Portable balancing machine and vibration analyzer Balanset-1A
https://vibromera.eu/shop/854/
https://vibromera.eu/shop/854/
The Balanset-1A is equipped with 2 channels and is designed for dynamic balancing in two planes. This makes it suitable for a wide range of applications including crushers, fans, mulchers, augers on combines, shafts, centrifuges, turbines and more. Its versatility in working with different types of rotors makes it an indispensable tool for many industries.
https://vibromera.eu/shop/854/
https://vibromera.eu/shop/854/
Portable Balancer Overview
The Balanset-1A is a dual-channel vibration balancing and analysis device designed to work with a variety of rotor types including crushers, fans, mulchers, augers on combines, shafts, centrifuges, turbines and many others. It provides high precision and efficient balancing through a range of advanced features and technologies.
https://vibromera.eu/shop/854/
The Balanset-1A is a dual-channel vibration balancing and analysis device designed to work with a variety of rotor types including crushers, fans, mulchers, augers on combines, shafts, centrifuges, turbines and many others. It provides high precision and efficient balancing through a range of advanced features and technologies.
https://vibromera.eu/shop/854/
Balancing Mode:
Single Plane Balancing: Reduces vibration by balancing rotors in a single plane.
Two Plane Balancing: Achieves dynamic balancing by balancing rotors in two planes.
Polar Graph: Accurately places weights by visualizing imbalance in a polar graph.
Restore Last Session: Resumes previous balancing sessions for convenience.
Tolerance Calculator (ISO 1940): Computes acceptable balancing tolerances according to ISO 1940.
Grinding Wheel Balancing: Utilizes 3 counterweights for balancing grinding wheels.
https://vibromera.eu/shop/854/
Single Plane Balancing: Reduces vibration by balancing rotors in a single plane.
Two Plane Balancing: Achieves dynamic balancing by balancing rotors in two planes.
Polar Graph: Accurately places weights by visualizing imbalance in a polar graph.
Restore Last Session: Resumes previous balancing sessions for convenience.
Tolerance Calculator (ISO 1940): Computes acceptable balancing tolerances according to ISO 1940.
Grinding Wheel Balancing: Utilizes 3 counterweights for balancing grinding wheels.
https://vibromera.eu/shop/854/
Charts:
Overall Charts: Visual representation of overall vibration.
1x Charts: Displays vibration patterns of the fundamental frequency component.
Harmonic Charts: Indicates the presence and impact of harmonic frequencies.
Spectrum Charts: Graphical representation of the frequency spectrum for detailed analysis.
Additional Capabilities:
Archive: Stores and retrieves past balancing sessions.
Reports: Generates detailed reports of balancing outcomes.
Re-balancing: Facilitates the repetition of the balancing process with saved data.
Serial Production Balancing: Suitable for rotor balancing in serial production.
Balanset-1A also supports both Imperial and Metric systems, ensuring global compatibility and convenience.
https://vibromera.eu/shop/854/
Overall Charts: Visual representation of overall vibration.
1x Charts: Displays vibration patterns of the fundamental frequency component.
Harmonic Charts: Indicates the presence and impact of harmonic frequencies.
Spectrum Charts: Graphical representation of the frequency spectrum for detailed analysis.
Additional Capabilities:
Archive: Stores and retrieves past balancing sessions.
Reports: Generates detailed reports of balancing outcomes.
Re-balancing: Facilitates the repetition of the balancing process with saved data.
Serial Production Balancing: Suitable for rotor balancing in serial production.
Balanset-1A also supports both Imperial and Metric systems, ensuring global compatibility and convenience.
https://vibromera.eu/shop/854/

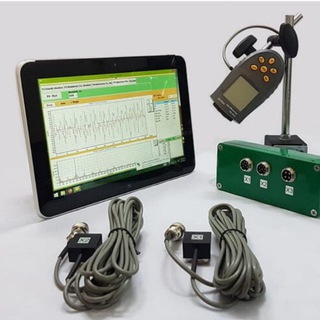

Specifications:
2x Vibration Sensors (Vibro Accelerometers, cable length 4m, optional 10m)
1x Optical Sensor (Laser Tachometer, distance: 50 to 500mm, cable length 4m, optional 10m)
1x USB Interface Module with Software for PC Connection
Software Capabilities: Measures vibration, phase angle, and calculates the value and angle of the correction mass.
https://vibromera.eu/shop/854/
2x Vibration Sensors (Vibro Accelerometers, cable length 4m, optional 10m)
1x Optical Sensor (Laser Tachometer, distance: 50 to 500mm, cable length 4m, optional 10m)
1x USB Interface Module with Software for PC Connection
Software Capabilities: Measures vibration, phase angle, and calculates the value and angle of the correction mass.
https://vibromera.eu/shop/854/
Details:
Number of Measurement Channels:
Vibration: 2
Rotational Speed: 1
Range of RMS Vibration Velocity Measurement, mm/s: 0 to 80
Frequency Range of RMS Vibration Velocity Measurement, Hz: 5 (10) to 550 (1000)
Limits of Permissible Absolute Measurement Error of RMS Vibration Velocity at Base Frequency (80 Hz) and in the Working Frequency Range, mm/s: ±(0.1 + 0.1*Vi), where Vi is the measured RMS vibration velocity
Number of Correction Planes for Balancing: 1 or 2
Range of Rotational Speed Measurement, RPM: 250 – 90000
Range of Vibration Phase Shift Measurement, Degrees: 0 to 360
Limits of Permissible Absolute Measurement Error of Vibration Phase Shift, Degrees: ±2
Accuracy: 5% of Full Scale
Phase Angle Measurement Accuracy, Degrees: ±1
Power: 140-220VAC, 50Hz
Weight: 4 KG
https://vibromera.eu/shop/854/
Number of Measurement Channels:
Vibration: 2
Rotational Speed: 1
Range of RMS Vibration Velocity Measurement, mm/s: 0 to 80
Frequency Range of RMS Vibration Velocity Measurement, Hz: 5 (10) to 550 (1000)
Limits of Permissible Absolute Measurement Error of RMS Vibration Velocity at Base Frequency (80 Hz) and in the Working Frequency Range, mm/s: ±(0.1 + 0.1*Vi), where Vi is the measured RMS vibration velocity
Number of Correction Planes for Balancing: 1 or 2
Range of Rotational Speed Measurement, RPM: 250 – 90000
Range of Vibration Phase Shift Measurement, Degrees: 0 to 360
Limits of Permissible Absolute Measurement Error of Vibration Phase Shift, Degrees: ±2
Accuracy: 5% of Full Scale
Phase Angle Measurement Accuracy, Degrees: ±1
Power: 140-220VAC, 50Hz
Weight: 4 KG
